Pico Laser Tattoo Removal Equipment

Pico Laser Tattoo Removal Equipment

Working Principle

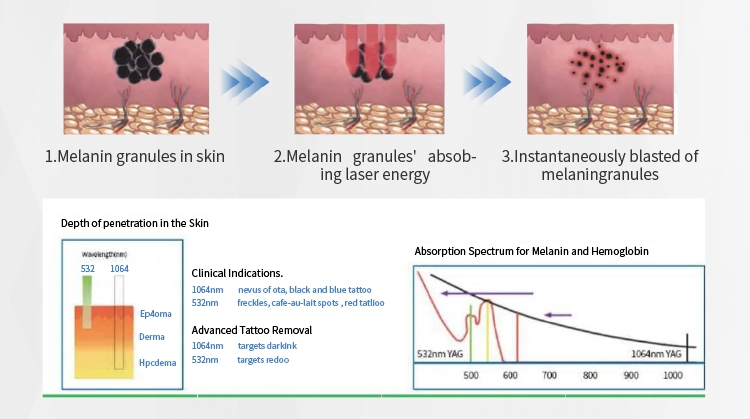

Picosecond LaserTherapy Systems is based on laser selective phototherapy and the blasting mechanism of the laser. Energy from a particular wavelength with an accurate dose will act on certain targeted color radicals: ink, carbon particles from the derma and epidermis, exogenous pigment particles, and endogenous melanophore from the derma and epidermis. When suddenly heated, pigment particles immediately blast into smaller pieces, which will be swallowed by macrophage phagocytosis enter into the lymph circulation system and finally be discharged out of the Body.

Pico Laser Tattoo Removal Equipment

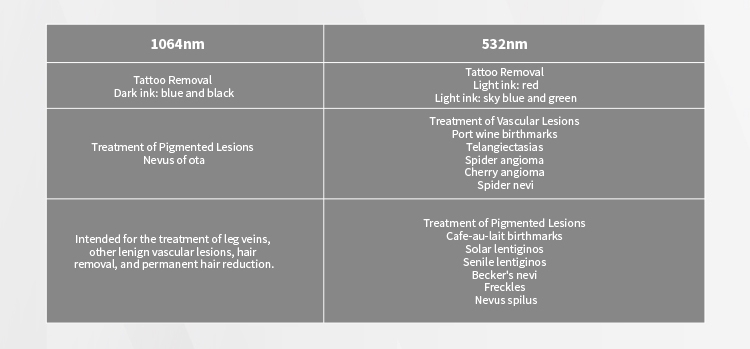

Tattoo Removal, Treatment of Vascular Lesions, Treatment of Pigmented Lesions, Incision, Excision, Ablation, and Vaporization of Soft Tissue for General Dermatology.

Pico Laser Tattoo Removal Equipment

Pico Laser Tattoo Removal Equipment

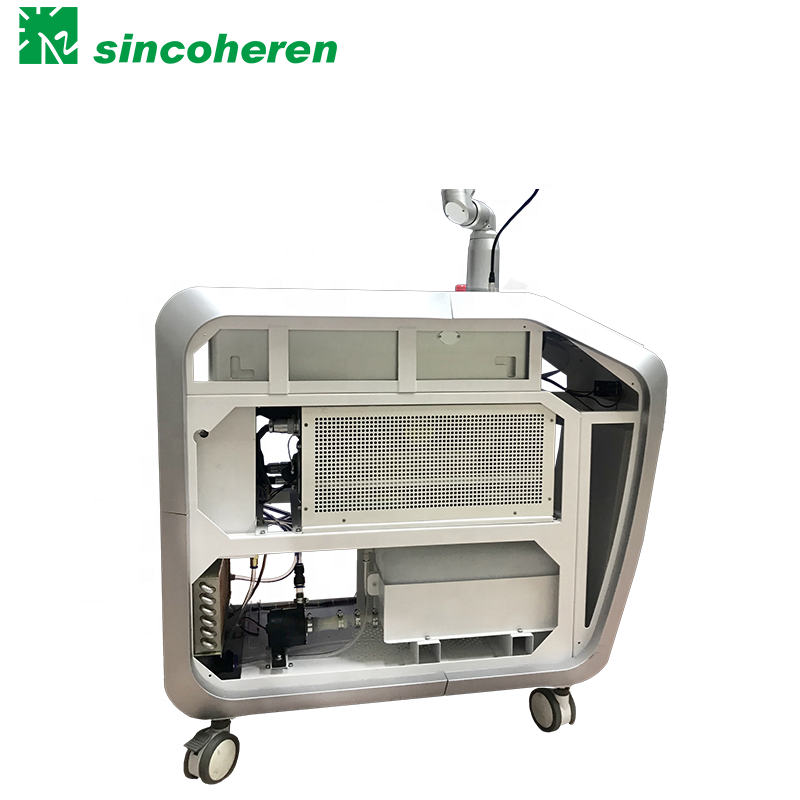

Laser module

· The device adopts a picosecond Laser module with a bi-wavelength of 1064nm & 532nm. The wavelength could be switched by electrical control.

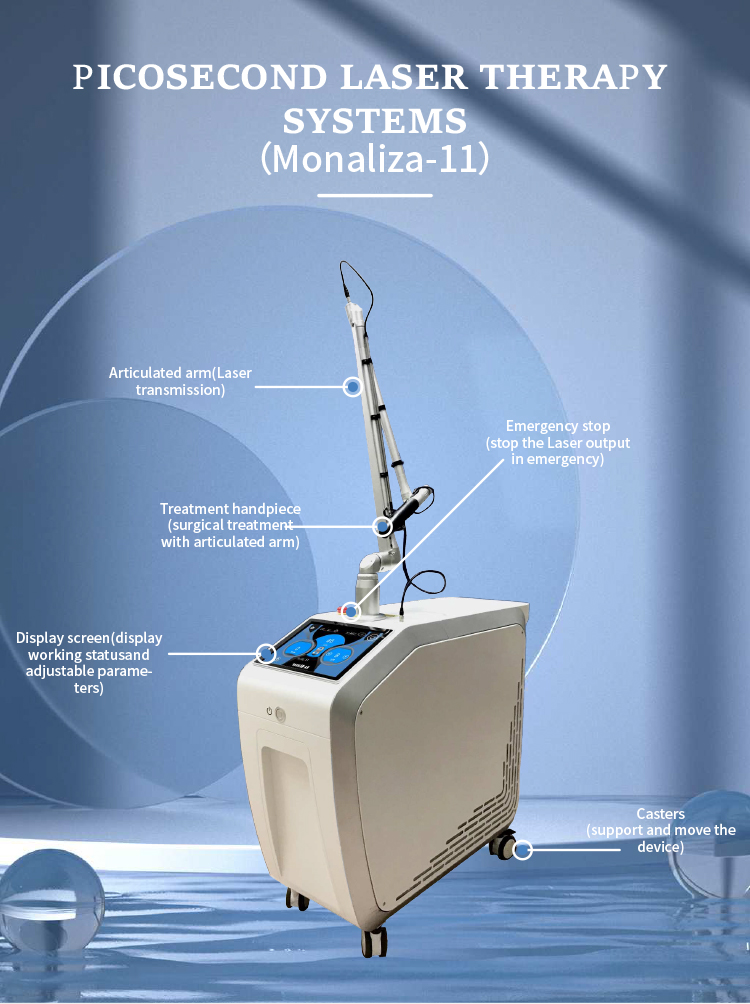

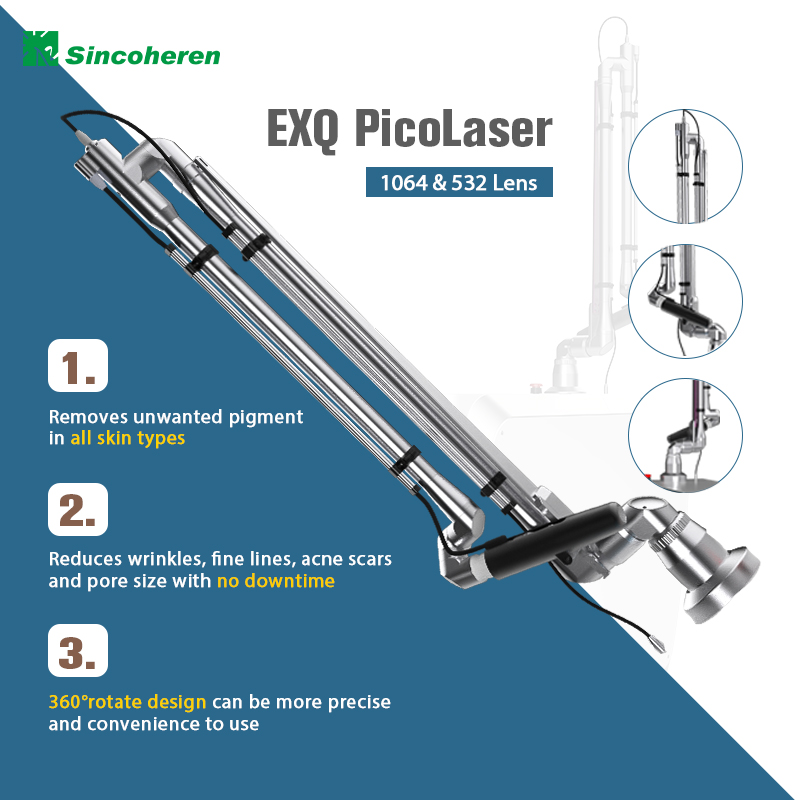

Articulated Arm

· The device adopts a seven-joint articulated arm, which can be installed to the main console quickly with locking screws.

· High reflectivity mirrors of 1064nm and 532nm are adopted in the articulated arm. The output efficiency of the articulated arm is above 80%.

· A handpiece with an adjustable spot size can be installed at the end of the articulated arm. The treatment spot size can be adjusted from 2 to 10mm.

Laser Power Supply

· Laser power is used to provide power for the laser module to produce a pulse laser.

· The system adopts integrated laser power and the laser power can be communicated with the system-controlling core, which can control the output voltages and relevant synchronization information and then control the laser module energy output.

Cooling System

· The system includes a circulating cooling system and the cooling medium shallbedeionized water or purified water.

· ln cooling system, water flow sensor, and temperature sensor are used to monitor the working status of the cooling system and feedback on the related parameters to the control synchronously, which will control the cooling system in real-time.

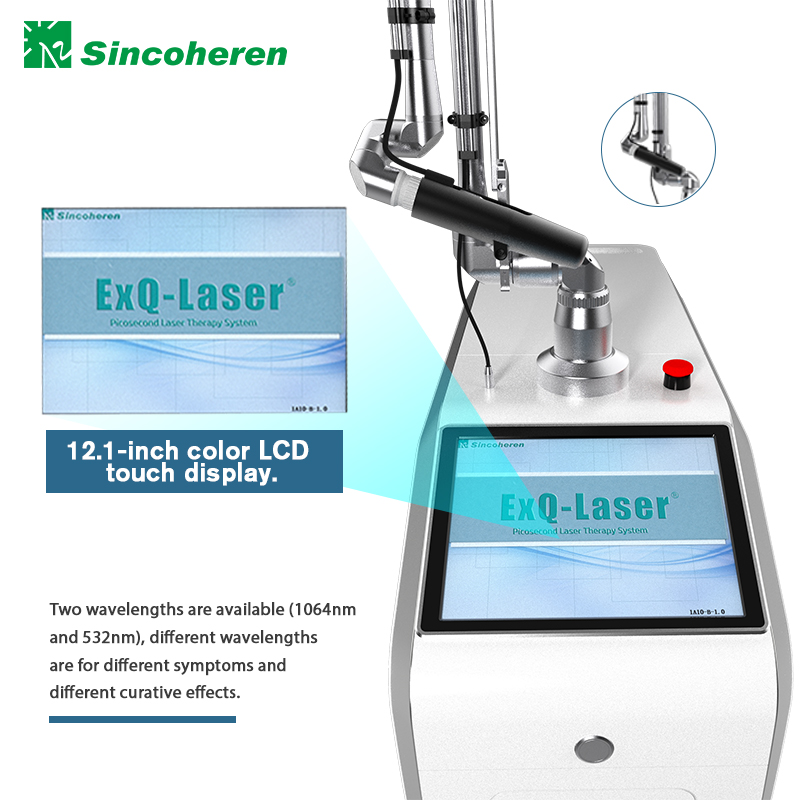

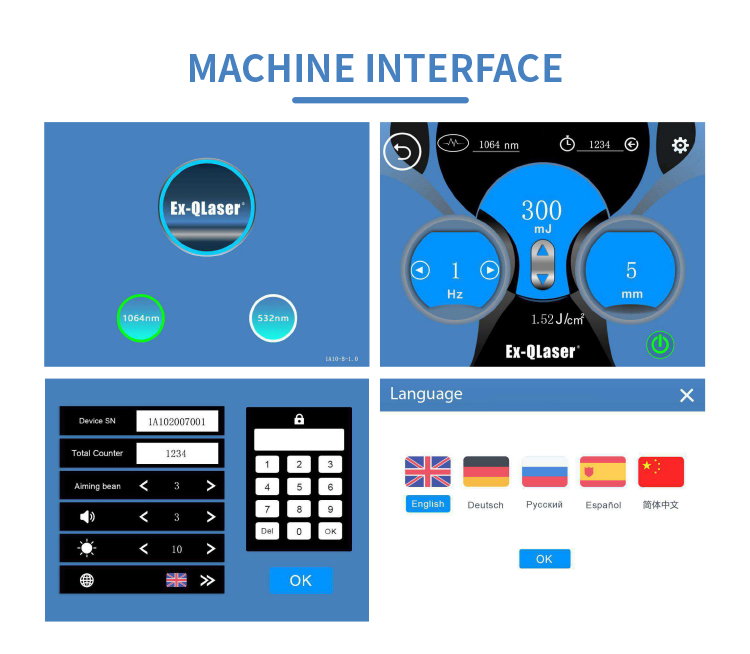

Display of Control System

· Power-on and power-off the system is realized through the power button.

· If the system has any problems, the screen will pop out relevant alarming and error messages with acousto-optic indication.

· The emergency switch is used to cut off the laser output in case of a laser accident and protect the personnel from being injured.

Pico Laser Tattoo Removal Equipment

Pico Laser Tattoo Removal Equipment

Pico Laser Tattoo Removal Equipment
